Special Characters in Revit Schedules

Is this a standard Revit schedule?

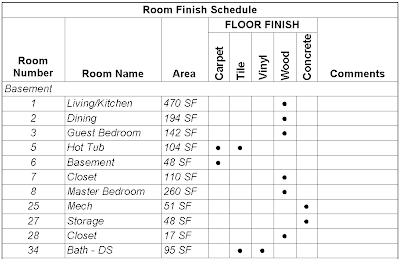

Revit does not allow for graphics to be included in a schedule.  This has been on the wish list but has not been included as of yet.  Revit does allow for special characters to be used.  Special characters can be used as long as the character is of the same font style as the font defined in the body font style of the schedule.  One example of the use of special characters would be to create a ‘dot matrix’ type of schedule where you want to show a special character as the dot.

Learn how to create this type of schedule plus many other scheduling tips in my AU session.

AB1712 - Schedules: Beyond the Basics

Wednesday 8:00-9:30

See you in Vegas!

BIM Coordinator

Autodesk Labs have a new product to assist with coordinating Revit with Civil 3D.  This new add-in tool will allow the coordinates inside of Civil 3D be saved out as an external file, that can be imported into Revit to acquire the Shared Coordinates.  This process appears to work without having to import the actual Civil file.  A quicker, simpler way to make sure you Revit model has the correct coordinates.

The add-in app is written for release 2012, but I copied it to my 2013 version and it appears to work correctly.

Check it out!

Point Cloud Extraction for Revit

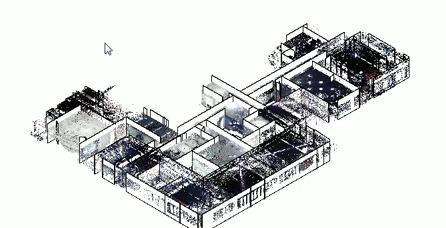

Check out the new Point Cloud Extraction for Revit tools.

http://www.appliedsoftwareblog.blogspot.com/

Creating 3D Views for Levels

Just posted a new post on about creating 3D Views for Levels.  Check it out on the Applied Software Blog.
