Duct and Pipe Systems in Revit MEP 2012


One of the biggest changes in Revit MEP 2012 is the addition of Duct and Pipe System Families.  Although it appears to be a small change, it actually creates a major improvement in how projects can be set up.  Prior to 2012, MEP Engineers relied heavily on View Filters to control the graphics of different duct and pipe systems.  For example, a View Filter would be created to distinguish the difference between Domestic Cold Water pipes and Domestic Hot Water pipes.  Ducts and pipes were simply ducts and pipes, and not part of a system until they were connected to a connector.  The connector contained all the information about the system.

In Revit MEP 2012, we have the ability to create duct and pipe systems before modeling and connecting to connectors with the addition of System Families.  The new System Families can now be configured prior to the project start to indicate graphical differences in the systems.  In addition to presetting up the System Families, as ducts and pipes are being modeled, the System is specified in the Properties palette before connecting to fixtures or equipment.  This change will all but eliminate the need to rely on View Filters to control the graphics.  System Families can now be configured in the Revit Templates so that all views will represent the correct graphics no matter if View Filters are used or not.  If View Filters are still desired, they will override any graphical settings that are set in the System Family settings.

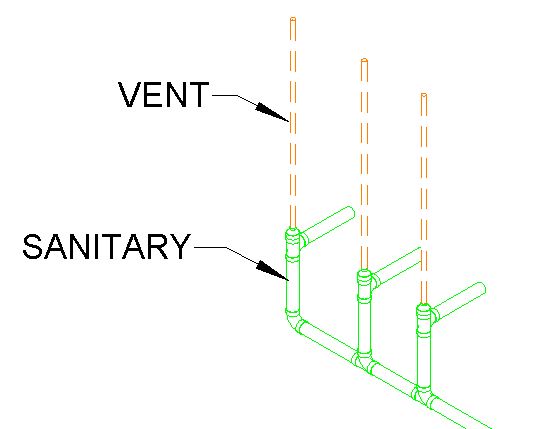

This new approach will also make it easier to switch if needed from one system to another.  Although this is typically not the desired result, it is very useful when trying to switch from Sanitary piping to Vent piping.  Prior to this release it was difficult to make this switch with in the same run of pipes.


Another plus to this added feature is that we can now create additional System types.  In prior releases we were stuck with the out of the box system types.  If we were trying to create a system for Gas, we had to use the 'Other' system.  Now, with System Families, we can simply duplicate an existing System Family and name it anything we want.  This allows us to have system names that actually match our systems.

I see this as a major improvement in how we create our systems.  Now we are defining our systems as we model our pipes as opposed to first modeling everything and then having to go back and create our systems.

6 comments:

stealthnyc said...

Hi. Was wondering if you could help me with something related to this. I created a "Telecom Bus Duct" Duct system and the properties for this type says "Return Air" under System Classification. Is there any way to change this? Thanks.

Mike Massey said...

It cannot be changed. The System Classification comes form the original type that you duplicated to create the new type. Revit comes with 3 system classifications; Supply, Return, and Exhaust. These can not be added to or modified.

Anonymous said...

Hi, love your blog.
From your experience how much system families do you normally customazie in your base template. Ofcourse they are per discipline mech, elec, fire etc but even within mech how much system families do you normally allow?
I understand it will depend on projects but I still try to keep the template small as possible due to expectation that the project file size increase dramatically.

Brian Sanderson said...

As far as the bus duct runs go you could always model these with the cable tray tool. I believe that there is a system selector for cable tray that designates it as power, comm, security etc... May take a custom cable tray to get it to look good though.

Brian Sanderson said...

As far as the bus duct runs go you could always model these with the cable tray tool. I believe that there is a system selector for cable tray that designates it as power, comm, security etc... May take a custom cable tray to get it to look good though.

emma99 said...

I like the helpful information you provide in your articles.I enjoyed your helpful blog. awesome work.I read few blog posts on this internet site and I conceive that your web site is real interesting and has got sets of great info .
